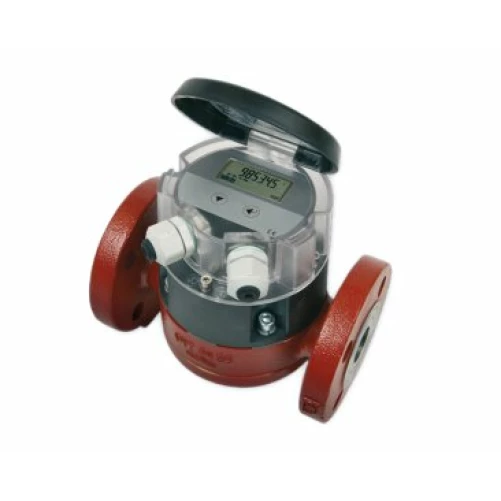

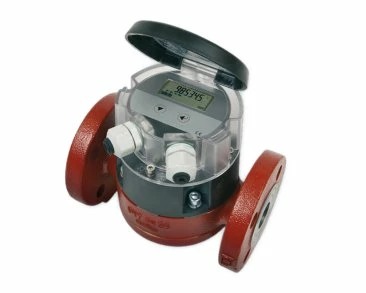

VZFA II 15 Contoil Oil Meter – (10-400 Max 600 litre/hr)
€2.712,60 - €3.179,00
VZFA II 15 Contoil Oil Meter – (10-400 Max 600 litre/hr)
High Accuracy Version
Digital Display (Rate/Total/Temp/Mass)
15mm PN25 Flanges
Product Code:
- 96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
- Persoonlijke klantenservice
- Ruim assortiment met een breed scala aan topmerken
- Voor aantallen een extra korting nodig? Neem dan contact met ons op
VZFA II 15 Contoil Oil Meter – (10-400 Max 600 litre/hr)
Digital Display (Rate/Total/Temp/Mass)
15mm PN25 Flanges
Product Code:
Max Temp 180C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 0.5% of actual value
8 Digit Totaliser 4-20mA & Pulse Output
Specification
VZF II 15 FL 180/25
CONTOIL® flow meter for mineral oil.
Electronic counter with display
Characteristics:
Display of total volume, resettable
trip volume (up to 8 totalizers,
4 of resettable), flow rate,
temperature, mass and normalized
volume in m3, liters, US gallons or
tons, kilograms and pounds.
Programmable outputs.
Nominal diameter: DN 15mm
Connection flange: DN 15
Nominal pressure: PN 25bar
Installation length: 165mm
Installation position: horiz / vert
Temperature, max.: 180°C
Measuring range: 20…600l/h
Max. continuous flow: 400l/h
Max. deviation: ±1% of value
Repeatability: ±0.2%
Registration capacity: 100Mio
LCD display: 8 positions, 8mm high
Outputs: 1 analog and 2 digital
Analog: 4…20mA
Digital Pulse, Frequency, Logic
Nominal voltage: 24V DC
Power supply via 4…20mA: 6…30V DC
Protection class: IP66/IP68/IP69
Ambient temperature: -25…+70°C
| Marine Approval | Without Marine Certification ~ Standard, Germanische Lloyd's 962951 (+ £250.80) |
|---|---|
| Materials Cert | Without Materials Cert ~ Standard, DIN 2.1 Cert Supplied (+ £84.70), DIN 2.2 Cert Supplied (+ £84.70), DIN 3.1 Cert Supplied (+ £215.60) |
