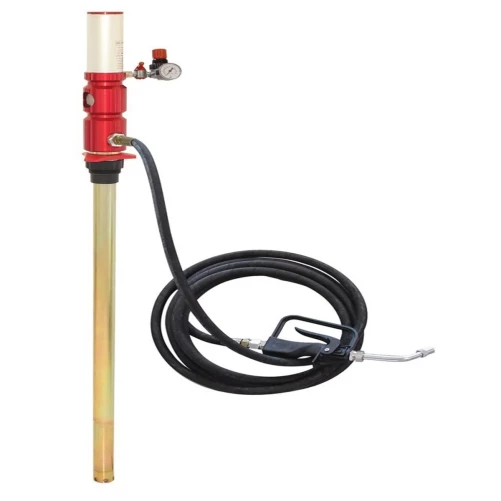

- Pneumatic pumps specially suitable for the oil transfer with medium-high viscosity (SAE 15/140) and anti-freeze for medium-long distances (150-200 m).
- The air pressure may vary between a minimum of 3.5 bar and a maximum of 10 bar.
- They have built-in a fixation drum thread of R2″ and M64x4 (also called bung adapter).
- Using the suitable accessories these pumps can be hung up on the wall or assembled on drums, containers or mobile trolleys.
- GM-5 · Pneumatic pump for wall assembly | 12061
- GM-5 · Pneumatic pump for 200-litre drum | 12081
| Oil delivery capacity | 28 l/min |
| Ratio | 5:1 |
| Working pressure | 6-8 bar |
| Air consumption | 250 l/min |
| Air inlet connection | F1/4″ G |
| Oil outlet connection | M1/2″ G |
| Noise level | 80 dB |
| Shank diameter | 42 mm |
| Shank length | 215 mm (wall)
940 mm (drum) |
| Weight | 5.86 kg (wall)
7.71 kg (drum) |
| Box volume | 0.007 m³ (wall)
0.016 m³ (drum) |
