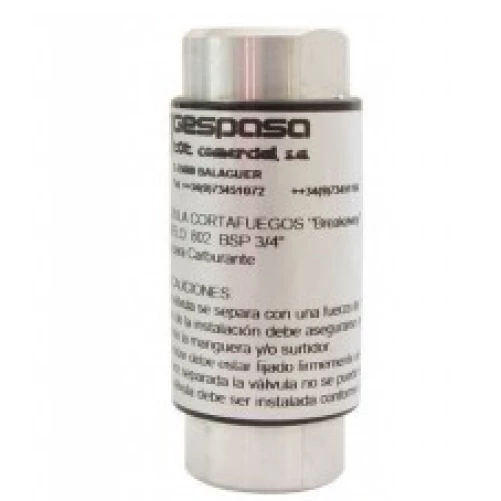

The breakaway valves are designed to be installed in the fuel supply hoses and they will be separated when there was a strong pull. The double seat valve automatically cuts the fuel supply, limiting any fuel leak and protecting the suppy kit.
- Body: aluminium
- Main seals: Viton
- Main spring: stainless steel
- Guide and poppet: POM
- Protective sleeve: PVC
The valve is designed to be replaced after the separation.
| Connection threads |
Flow | Weight | |
| 802 | BSP 3/4″ x BSP 3/4″ | 0-60 l/min | 230 g |
| 804 | BSP 1″ x BSP 1″ | 0-120 l/min | 320 g |
| Options | 802 BREAKAWAY VALVE – BSP 3/4" x BSP 3/4" 0-60 l/min, 804 Breakaway Valve – BSP 1"xBSP 1" 0-120 l/min |
|---|---|
| Product type: | Accessories |
| Vendor: | Gespasa Shop – International Fuel Equipment and Services |
| Size: | 802 BREAKAWAY VALVE – BSP 3/4" x BSP 3/4" 0-60 l/min, 804 Breakaway Valve – BSP 1"xBSP 1" 0-120 l/min |
| Product sku: | 805604016 |
| Weight: | 0.4 kg |
