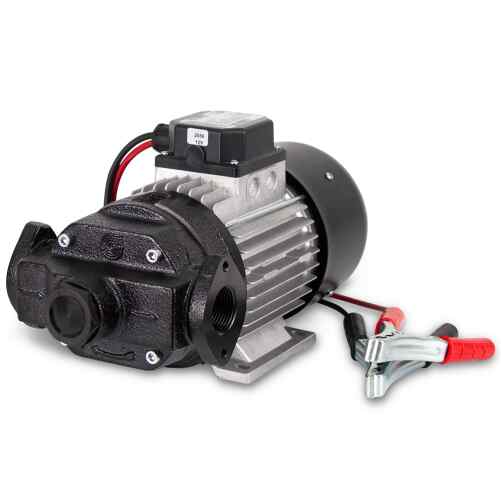

AG-90 24 VDC WITH SWITCH · 70-80 l/min
- Self-suction – self-priming. Eccentric of self-adjusting blades
- With recirculation bypass
- Suction: 2.7 m · Delivery: 20 m
- Priming pipe suction: 5 m
- Free flow: 70-80 l/min
- Consumption: 35-53 A (12 VDC) and 24-32 A (24 VDC)
- Motor: 0.37 kW (12 and 24 VDC) self-ventilated, dust protected
- 1,500 rpm
- Continuous duty
- Tropicalized
- IP-55 Protection
- Connection through F1″ (BSP) threads and flanges
- 3 m cable with clamps
- Anti-rust treatment
Size and weight (approx.):
- Size: 350x165x175 mm (length x width x height)
- Weight: 15,5 kg
| Options | AG-90 12 VDC WITH SWITCH · 70-80 l/min, AG-90 24 VDC WITH SWITCH · 70-80 l/min |
|---|---|
| Product type: | Diesel Transfer Pump |
| Vendor: | Gespasa Shop – International Fuel Equipment and Services |
| Product option: | AG-90 12 VDC WITH SWITCH · 70-80 l/min, AG-90 24 VDC WITH SWITCH · 70-80 l/min |
| Product sku: | 00042 |
| Weight: | 15.5 kg |
