AG 100 PUMP + MGE-110 METER + BRACKET TYPE

€738,00 - €868,00

Options

Wissen

Actuele voorraadstatus checken? Neem dan contact met ons op of maak gebruik van de live chat.

Artikelnummer: 31941-CF00000 Categorieën: Gespasa, Pump Kits and Accessories Tag: Pump Kits and Accessories

Options

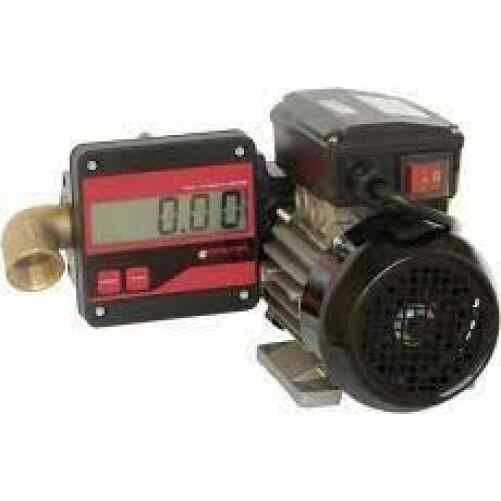

Includes MGE-110 Meter & AG100-230 VAC-100 LPM pump

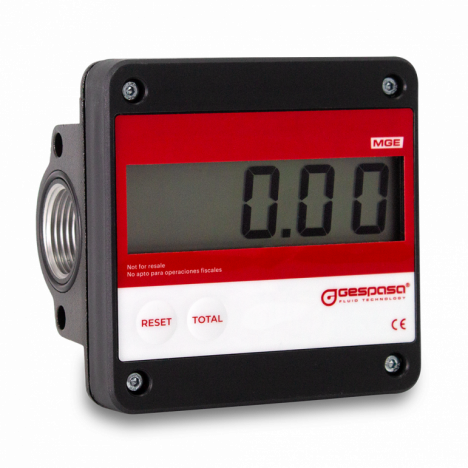

Meter MGE-110

TECHNICAL DATA
- Body made of aluminium
- Tropicalised electronics
- Measurement through oval gear of high accuracy
- Digital Display of liquid crystal
  - 3 integers and 2 decimals: “999.99“
  - 4 integers and 1 decimal: “9999.9“
  - 5 integers: “99999“
- Flow (approx.):
  - 5-110 l/min (diesel)
  - 5-80 l/min (lubricant)
- Fluid density: 2-2000 cSt
- Accuracy: ±0.5%
- Maximum pressure: 55 bar
- Max. temperature: 50 ºC
- Min. temperature: -10 ºC
- Connection through F1″ thread or flange
- Button battery of long duration (approx. 4 years, according to its application)
- Low battery display
- Calibration parameters and litre totalizer saved in PERMANENT memory
Size and weight (approx.):
- Dim.: 123x68x123 mm (lenght x width x height)
- Net weight: 0.850 kg
- Box dim.: 147x85x140 mm (lenght x width x height)
- Gross weight: 0.900 kg

—————————————————————————————

Pump AG-100 230 VAC · 100 l/min

Size and weight (approx.):

Beoordeel dit product

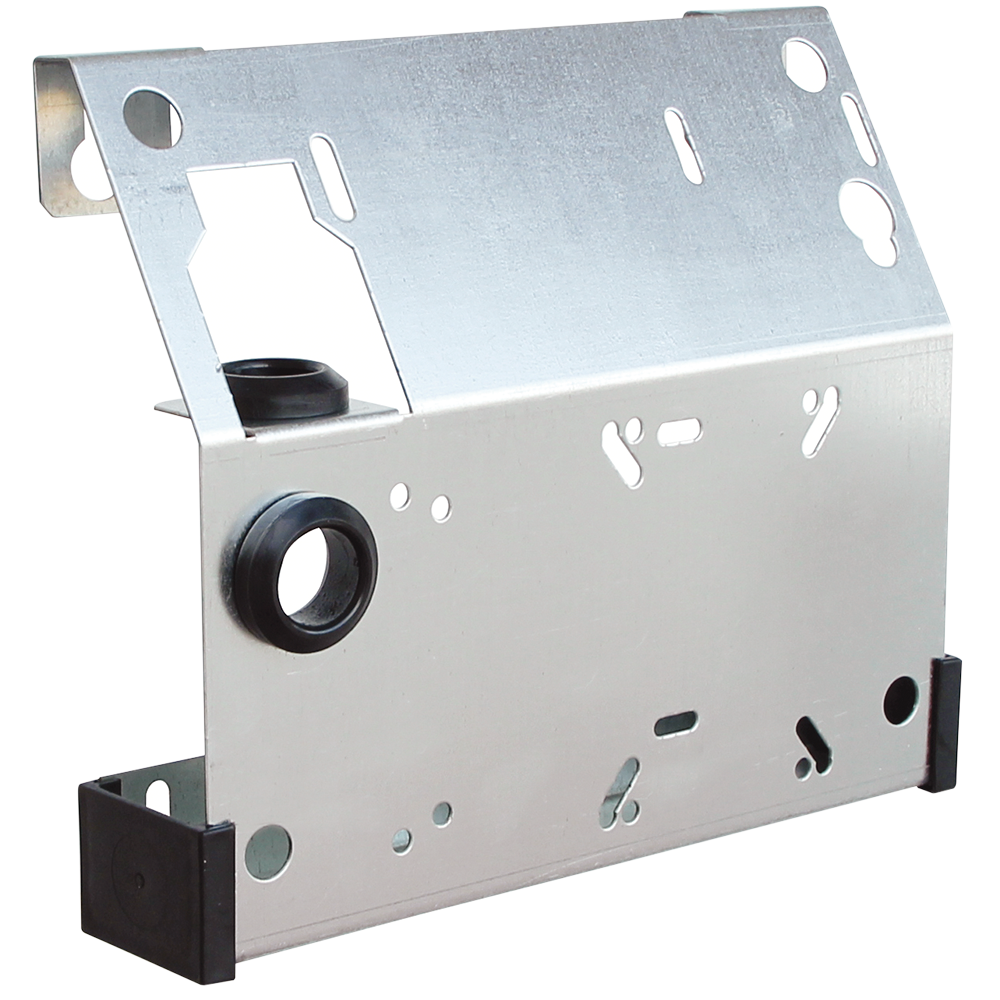

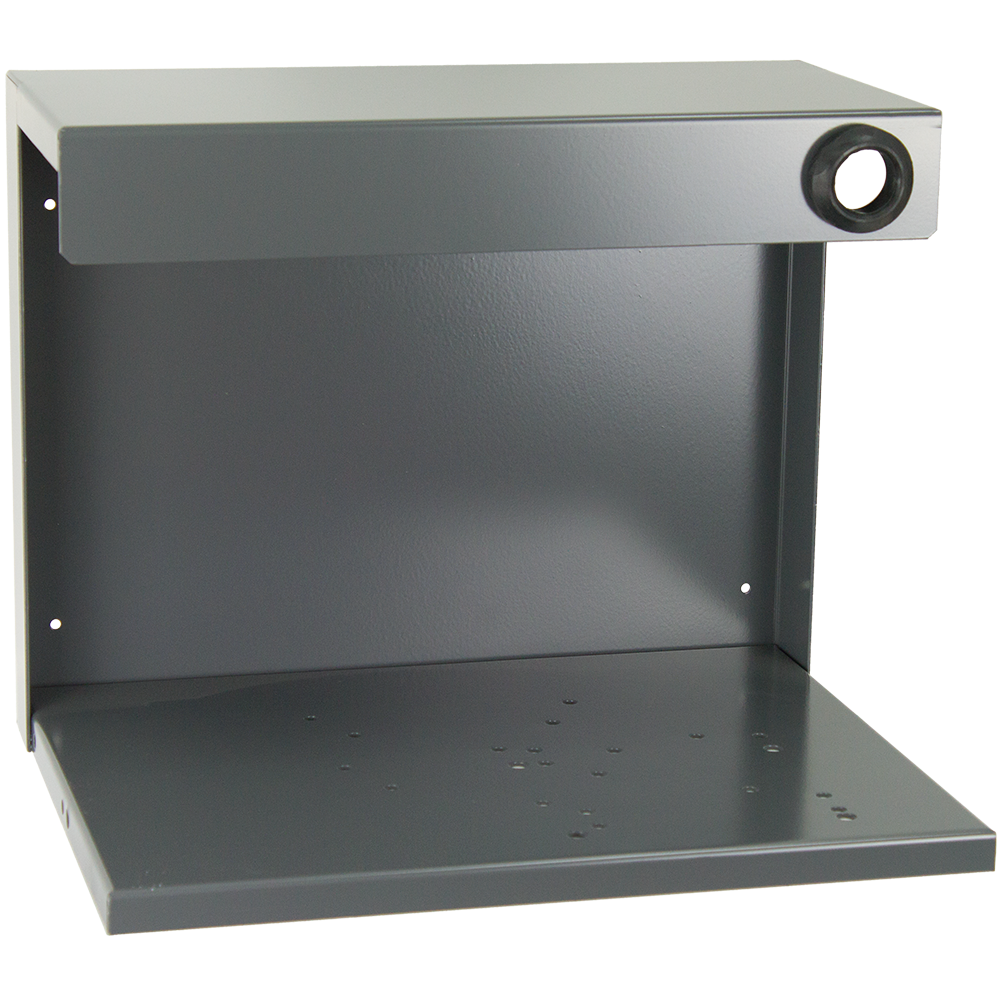

Options	SAG-100 230 VAC + base no. 4, SAG-100 230 VAC + universal support, SAG-100 230 VAC without base
Vendor:	Gespasa Shop – International Fuel Equipment and Services
Style:	SAG-100 230 VAC + base no. 4, SAG-100 230 VAC + universal support, SAG-100 230 VAC without base
Product sku:	31941-CF00000
Weight:	17.5 kg
