200LPM – BDP-200 230/400 VAC IP-55 – F11/2″ BSP

€10.558,90 (€12.776,27 incl. BTW)

96.42% heeft een goede tot zeer goede ervaring met SENSORS.NL
Persoonlijke klantenservice
Ruim assortiment met een breed scala aan topmerken
Voor aantallen een extra korting nodig? Neem dan contact met ons op

Toevoegen aan offerte

Artikelnummer: 10101 Categorieën: Flow Pumps, Gespasa Tag: Flow Pumps

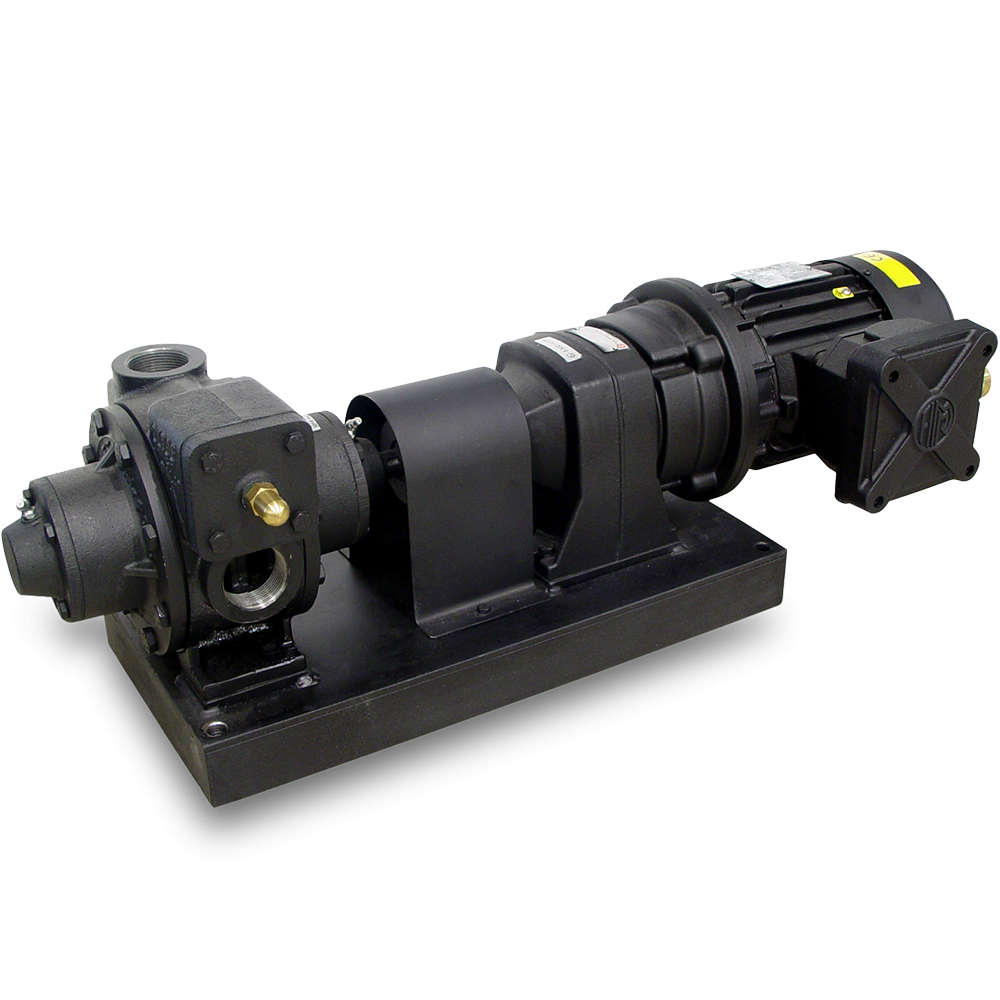

Bedplate vane pumps of high flow, self-suction, positive displacement, constant flow, inaudible and heavy-duty
The transfer is quick, uniform and inaudible.
The pump has built-in bypass valve.
It is specially intended for the transfer of high volumes, S-1 service, continuous for fuel tank charging and discharging, storage of fuel, hydrocarbon, diesel and another non-corrosive fluid and without solid particles in suspension.

BDP-200 · F1 1/2″ · IP-55

TECHNICAL DATA

PUMP

Flow: 200 l/min

Operation pressure: 3.5 bar

740 rpm

Connection through thread of 1 1/2″

Recommended diameters:

suction-delivery connection: Ø2″

Moto-pump group performance: horizontal

Bypass built-in

MOTOR

Voltage: 230/400 VAC triphasic

Frequency: 50 Hz

Power: 2.2 kW

IP-55 protection

Condensable protection: PTC probes

1,500 rpm

Insulation: F Class

Reducer/motor coupling: flange

Noise level: 80 dB(A)
Size and weight (approx.):
Dim.: 880x325x285 mm (length x width x height)

Weight: 85.5 kg

Beoordeel dit product

Product type:	Diesel Transfer Pump
Vendor:	Gespasa Shop – International Fuel Equipment and Services
Product sku:	10101
Weight:	85.5 kg
