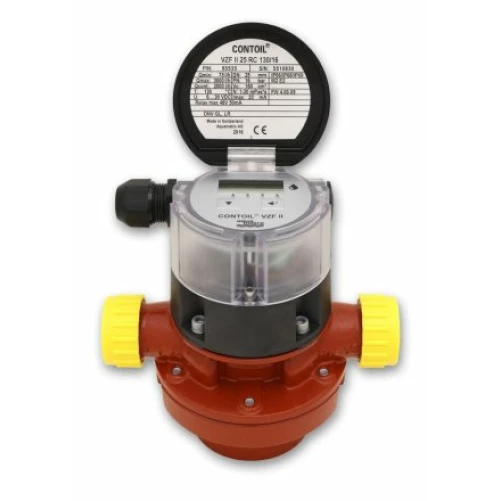

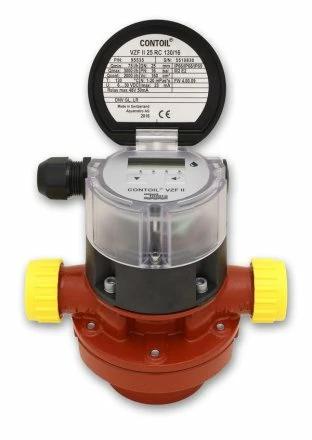

VZF II 20 Contoil Oil Meter - (40-1000 Max 1500 litre/hr)
€1.455,00 (€1.760,55 incl. VAT)
Digital Display (Rate/Total/Temp/Mass)
Product Code: 95519
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
VZF II 20 Contoil Oil Meter - (40-1000 Max 1500 litre/hr)
Digital Display (Rate/Total/Temp/Mass)
Product Code: 95519
Max Temp 130C
Max Pressure 16 bar Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser 4-20mA & Pulse Output
Specification
VZF II 20 RC 130/16
CONTOIL® flow meter for mineral oil.
Electronic counter with display
Characteristics:
Display of total volume, resettable
trip volume (up to 8 totalizers,
4 or resettable), flow rate,
temperature, mass and normalized
volume in m3, liters, US gallons or
tons, kilograms and pounds.
Programmable outputs.
Nominal diameter: DN 20mm
Threaded connection 1"
Couplings for pipe 3/4"
Nominal pressure: PN 16bar
Installation length: 165mm
Installation position: horiz / vert
Temperature, max: 130°C
Measuring range: 40...1500l/h
Max. continuous flow: 1000l/h
Max. deviation: ±1% of value
Repeatability: ±0.2%
Registration capacity: 100Mio
LCD display: 8 positions, 8mm high
Outputs: 1 analog and 2 digital
Analog: 4...20mA
Digital Pulse, Frequency, Logic
Nominal voltage: 24V DC
Power supply via 4...20mA: 6...30V DC
Protection class: IP66/IP68/IP69
Ambient temperature: -25...+70°C
