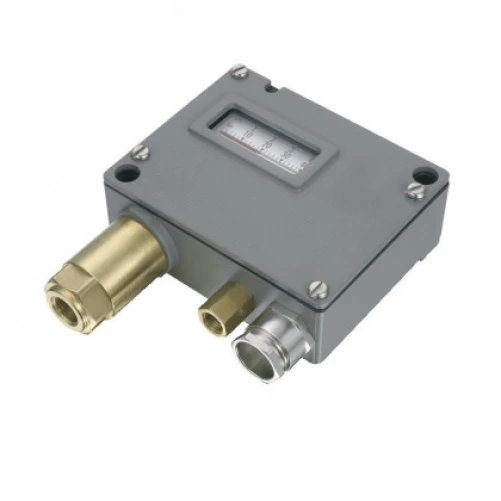

Trafag Pressure Switches PV16 (9032379905)

€245,60 (€297,18 incl. VAT)

Staff discount:

Quantity	Price
1 - 4	€245,60
5 - 9	€233,32
10 - 24	€221,04

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: 9032379905 Categories: Trafag, Trafag Pressure Switches, Trafag Pressure switches PV / 903 series Tags: 903 pressostat, adjustable pressure switch, pressure switch 903, adjustable pressure switch, trafag pressostat, vari pressostat trafag

Pressure switch with large and small adjustable switching differential, bellows sensor, high accuracy, calibrated for decreasing pressure.

Measuring range [bar] : 1 ... 16
Measuring element : bellows
Output : microswitch SPDT
Switching differential : 1 ... 7.5
Pressure connection : G1/4 BSP internal
Housing : Alu epoxy coated, IP65
Plug : Pg 13.5
Sensor temp [°C] : to +150
Ship approvals : ABS, BV, DNV, GL, KRS, LRS, PRS, RINA

Known by the item numbers:

903 2379 905
903.2379.905
9032379905

Rate this product

Weight	1 kg
Pressure range (Bar)	1 … 16
Overpressure max.	24
Switching differential	1 ... 7.5 (adjustable)
Brand	Trafag

Product Documents

Documents

Data sheet
