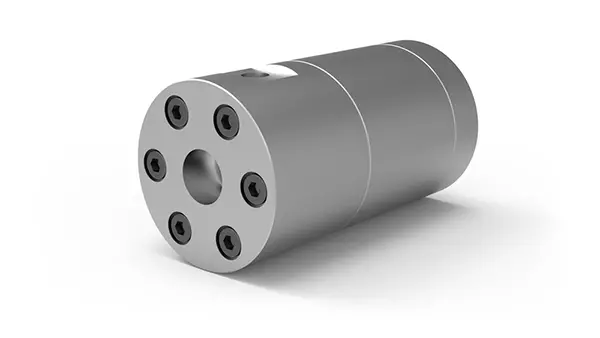

SRZ ST - Helical Flow Meters - high-viscosity - abrasiv media - 0.4 up to 400 l/min
The SRZ ST spiral flow meter series (ST for standard version) are flow meters used primarily in high-viscosity, abrasive, filled, lubricating and non-lubricating media. Thanks to its concept, temperature fluctuations and the resulting change in the viscosity of the medium have only a minor influence on the measurement accuracy of the SRZ ST. This makes it particularly suitable for use in test rigs and for measurements with varying application conditions.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
The SRZ ST spiral flow meter series (ST for standard version) are flow meters used primarily in high-viscosity, abrasive, filled, lubricating and non-lubricating media. Thanks to its concept, temperature fluctuations and the resulting change in the viscosity of the medium have only a minor influence on the measurement accuracy of the SRZ ST. This makes it particularly suitable for use in test rigs and for measurements with varying application conditions.
Measuring Accuracyup to ±0.1 %
Repeatability±0.05 % (under the same conditions)
Linearityup to ±0.25 % of actual flow
Materials
- Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L]
- Helicals: as per DIN 1.4122
- Bearing: tungsten carbide
- Seals: FKM, PTFE (others on request)
Pressureup to 315 bar [4,500 psi]
Medium Temperature-40 °C up to +150 °C [-40 °F up to +302 °F] (others on request)
