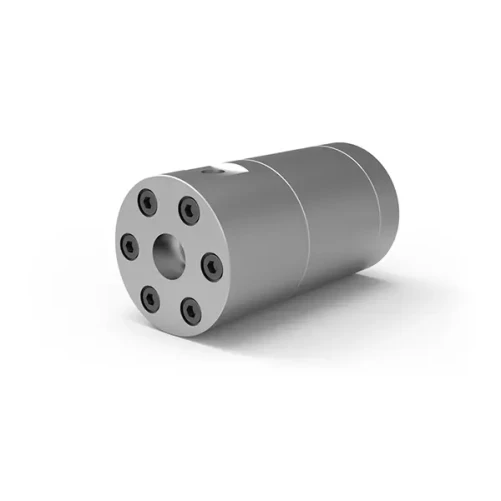

SRZ 100 ST - Helical Flow Meters in Standard Design high-viscosity and abrasiv media - 1.0 up to 100 l/min
The SRZ ST spiral flow meter series (ST for standard version) are flow meters used primarily in highly viscous, abrasive, filled and lubricating or non-lubricating media. Thanks to its concept, temperature fluctuations and the resulting change in the viscosity of the medium have only a minor influence on the measurement accuracy of the SRZ ST. This makes it particularly suitable for use in test rigs and for measurements with varying application conditions.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
The SRZ ST spiral flow meter series (ST for standard version) are flow meters used primarily in highly viscous, abrasive, filled and lubricating or non-lubricating media. Thanks to its concept, temperature fluctuations and the resulting change in the viscosity of the medium have only a minor influence on the measurement accuracy of the SRZ ST. This makes it particularly suitable for use in test rigs and for measurements with varying application conditions.
Measuring Ranges 1.0 up to 100 l/min
Measuring Accuracy up to ±0.1 %
Repeatability ±0.05 % (under the same conditions)
Linearity up to ±0.25 % of actual flow
Materials
- Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L]
- Helicals: as per DIN 1.4122
- Bearing: tungsten carbide
- Seals: FKM, PTFE (others on request)
Pressure up to 250 bar [3,600 psi]
Medium Temperature -40 °C up to +150 °C [-40 °F up to +302 °F] (others on request)
