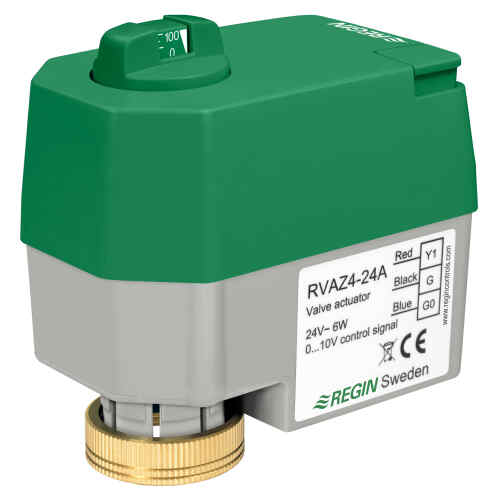

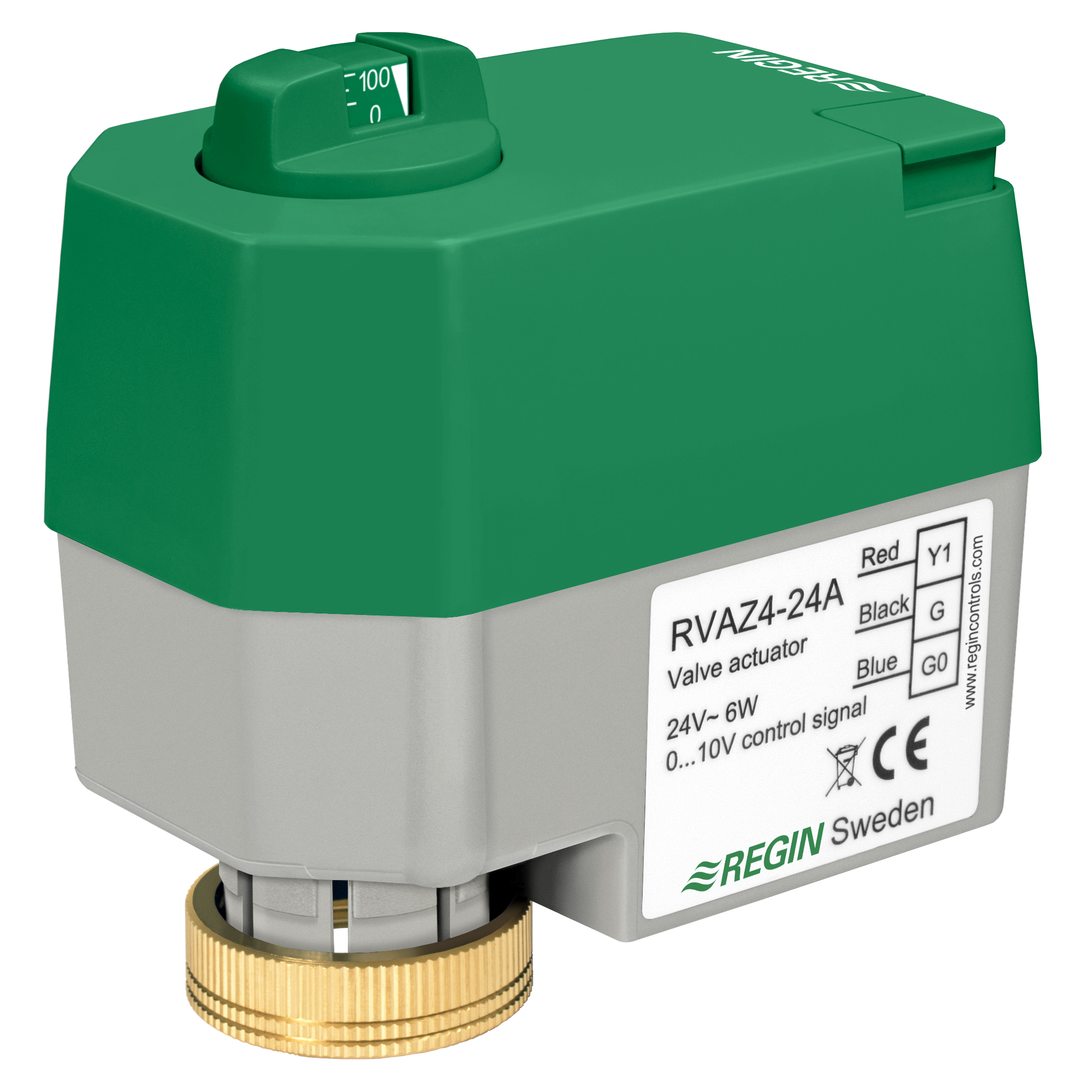

RVAZ4L1-24
The RVAZ4 series of valve actuators are easy to mount and have a clear position indication which shows the position of the actuator. The RVAZ4 models are intended for use together with Regin's valve ranges ZTV/ZTR and ZMD. The RVAZ4L1 models can be used for different brands of valves in combination with the OVA-L1 adapter.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
Specifications
| Force | 400 N |
|---|---|
| Supply voltage | 24 V AC |
| Power consumption | 0.6 W / 0.6 VA |
| Cable length | 2 m |
| Control signal | 3-point |
| Stroke length | 5.5 mm |
| Speed | 27.3 s/mm |
| Protection class | IP44 |
|---|---|
| Ambient humidity (non-condensing) | 10...90 % RH |
| Storage temperature | -10...80 °C |
| Connection toward valve | Standard M30 x 1.5 |
