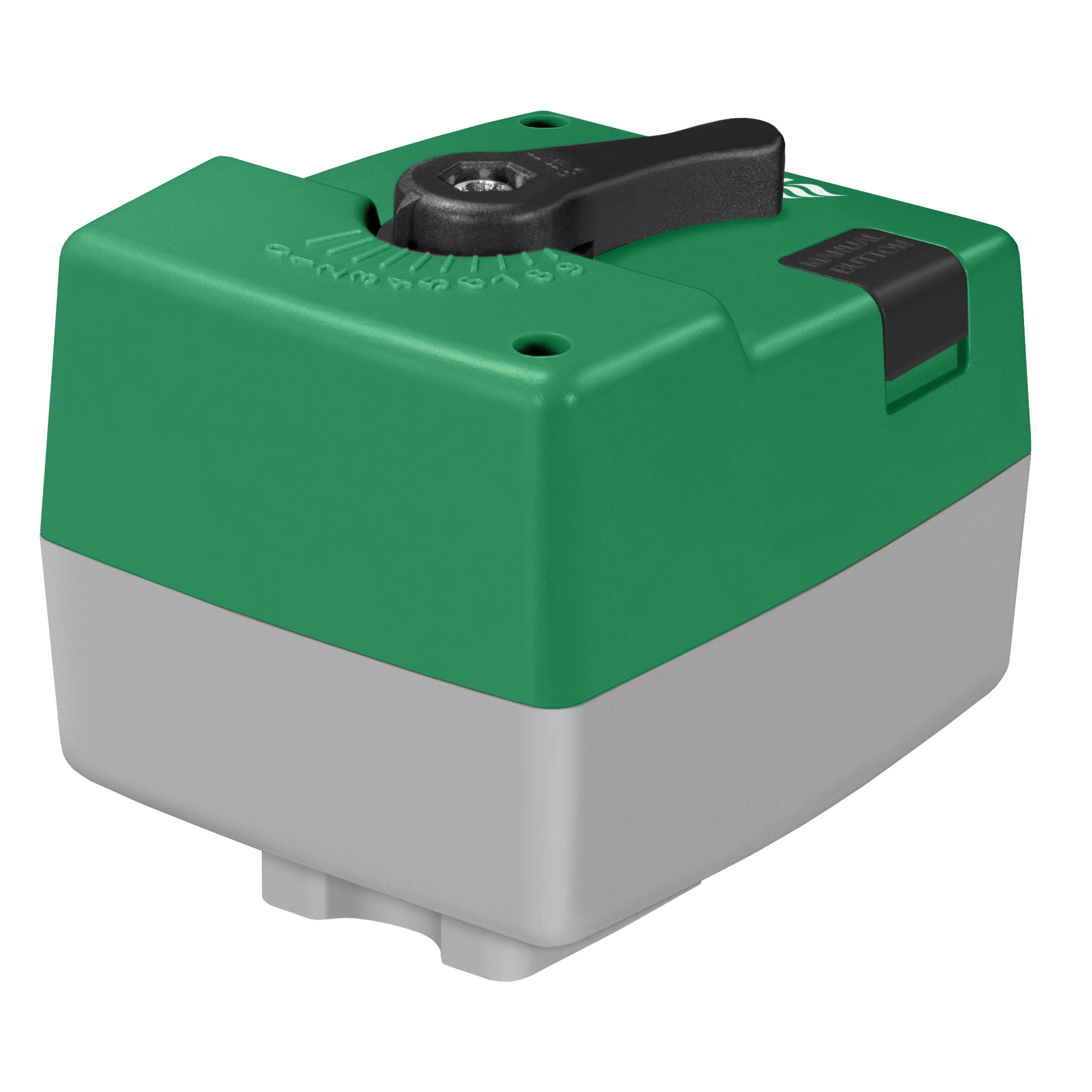

RVAB4-24
Ball valve actuator with bi-directional motor mainly used in central air-conditioning systems, heating systems, water treatment, and production industry to control the flow of cold/hot media.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
Specifications
| Supply voltage | 24 V AC |
|---|---|
| Power consumption | 3 VA |
| Torque | 4 Nm |
| Control signal | Floating (3-point) or On/ off (3-wire) |
| Running time, actuator | 45 s |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 10...90 % RH |
| Storage temperature | -30...70 °C |
| Working angle, rotation | 90 ° |
| Connection toward valve | Square 9 mm hole with M5 screw on valve |
