MONSTERPUMP-200 24 VDC Self-suction with vanes 0.74 kW - 200 l/min

• Self-priming, self-priming pump with eccentric vanes

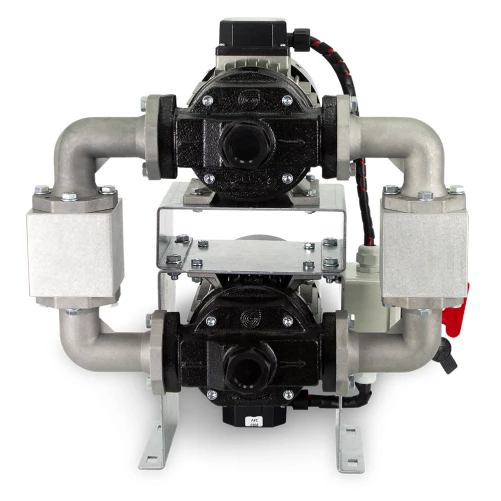

• Composed of two pumps connected by a manifold (on request)
• Suitable for transferring diesel fuel, at high flow rates, in areas where connection to 230 VAC or 110 VAC is not possible.

TECHNICAL CHARACTERISTICS

• Flow rate: 200 l/min
• Consumption: 30-47 A 24 VDC
• Pressure: 1.4 bar
• Motor: 2×0.37 kW 24 VDC, dustproof, self-ventilated
• Tropical
• Continuous operation
• IP-55 protection
• 1,500 rpm
• Equipped with recirculation bypass
• Suction power: 2.7 m
• Suction line suction: 5 m
• Connection with M1 ½" thread (BSP). The manifold can be built to specific requirements on request.
• Junction box with key switch
• Anti-rust treatment

Dimensions and weight (approx.):

• Dimensions: 440x410x460 mm (LxWxH)
• Weight: 35 kg

Optional:

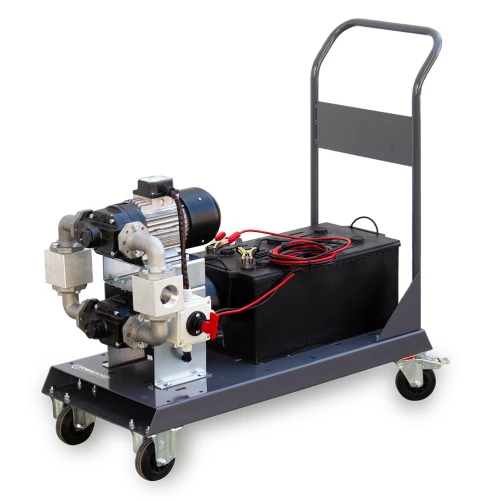

• Metal base plate cart with wheels
• Hoses and accessories
• Hose reel

** Price on request
