Adjustable pressure switch type PF243.10.BR.HN.0.14
€28,50 (€34,49 incl. VAT)
- Range: 1.5...10 bar
- Contact: N.O
- P. max.: 350 bar
- IP54 Cover not included
- Minimum of 5 pieces per order!
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us

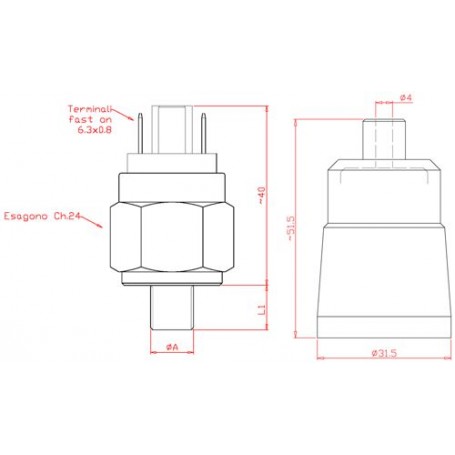

Electromechanically adjustable low voltage pressure switch (max. 48 volts 0.5 A), normally open or normally closed contacts, electrical connection to faston 6.3 x 0.8 IP00. Key hexagonal housing 24. IP54 electrical protection with CP54 protective cover is supplied separately. Threaded process connections.
| Pressure range (Bar) | 0,1..1, 0,2..2, 1,5..10, 15..50, 40..300, 40..80, 9..20 |
|---|---|
| Overpressure max. | 600, 300 |
| Max supply | 48 V |
| Brand | Sensors.nl |
