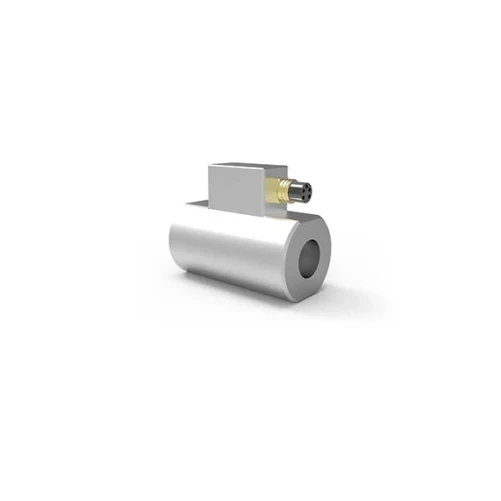

HM Subsea - Turbine Flow Meters for Subsea Immersion Applications - 0.3 to 500 l/min
The HM Turbine Flow Meters for Subsea Immersion Applications are reliable, durable and robust flow meters specially designed for demanding subsea applications. They are mainly used in applications with low and medium viscosity fluids such as seawater, glycol mixtures and various hydraulic fluids.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
The HM Turbine Flow Meters for Subsea Immersion Applications are reliable, durable and robust flow meters specially designed for demanding subsea applications. They are mainly used in applications with low and medium viscosity fluids such as seawater, glycol mixtures and various hydraulic fluids.
Measuring Ranges0.3 up to 500 l/min
Measuring Accuracy up to ±0.1 %
Repeatability ±0.05 % (under the same conditions)
Linearity ±1 % of actual flow
Viscosity Range 0.8 up to 30 mm²/s
Materials
- Housing: as per 1.4404 [AISI 316L] (others on request)
- Wheels: as per DIN 1.4460 [AISI 329] (others on request)
- Bearing: Tungsten carbide sleeve bearing
Pressure up to 1,400 bar [20,300 psi].
Medium Temperature -40 °C up to +60 °C [-40 °F up to +140 °F].
