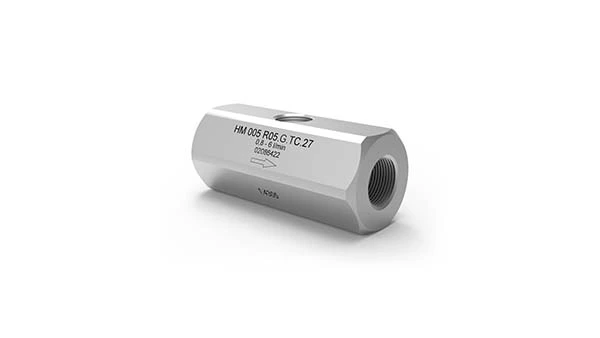

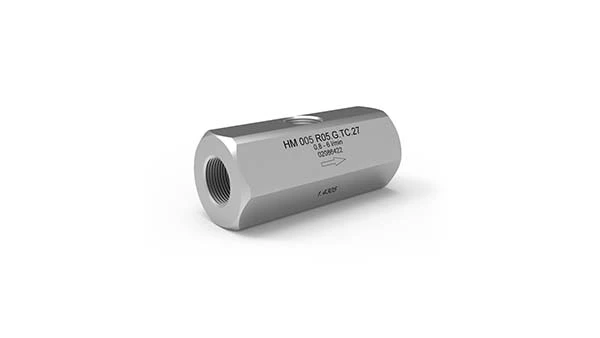

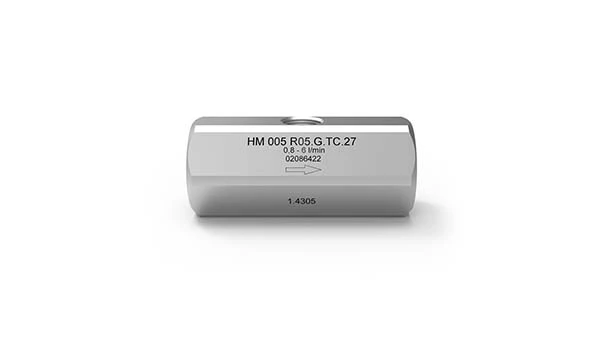

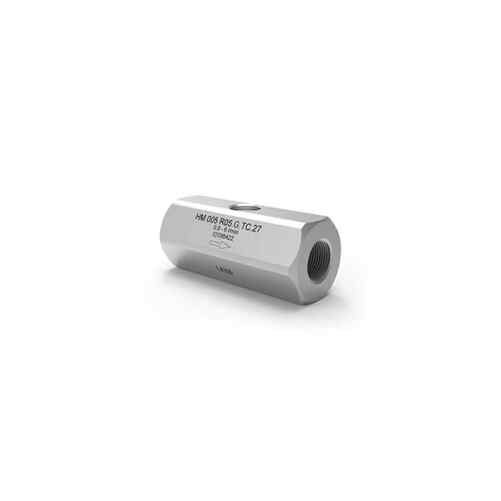

HM R - Turbine Flow Meters with BSPP Threads for lubricating and non-lubricating media -.
The HM R turbine flowmeter series (R for Female Inch Threads) is used for measuring continuous and discontinuous flow rates. They are mainly used for lubricants and non-lubricants. They are particularly suitable for low and medium viscosity fluids such as water, emulsions, glycol mixtures and light oils. Even the measurement of cryogenic liquids is possible.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
The HM R turbine flowmeter series (R for Female Inch Threads) is used for measuring continuous and discontinuous flow rates. They are mainly used for lubricants and non-lubricants. They are particularly suitable for low and medium viscosity fluids such as water, emulsions, glycol mixtures and light oils. Even the measurement of cryogenic liquids is possible.
Measuring Ranges 0.3 up to 400 l/min
Repeatability ±0.05 % (under the same conditions)
Linearity ±1 % of actual flow
Viscosity Range 0.8 up to 30 mm²/s
Materials
- Housing: as per DIN 1.4404 [AISI 316L] (others on request)
- Wheels: as per DIN 1.4460 [AISI 329] (others on request)
- Bearing: Tungsten carbide sleeve bearing
Pressure up to 630 bar [9,140 psi].
Medium Temperature -60 °C up to +350 °C [-70 °F up to +662 °F].
