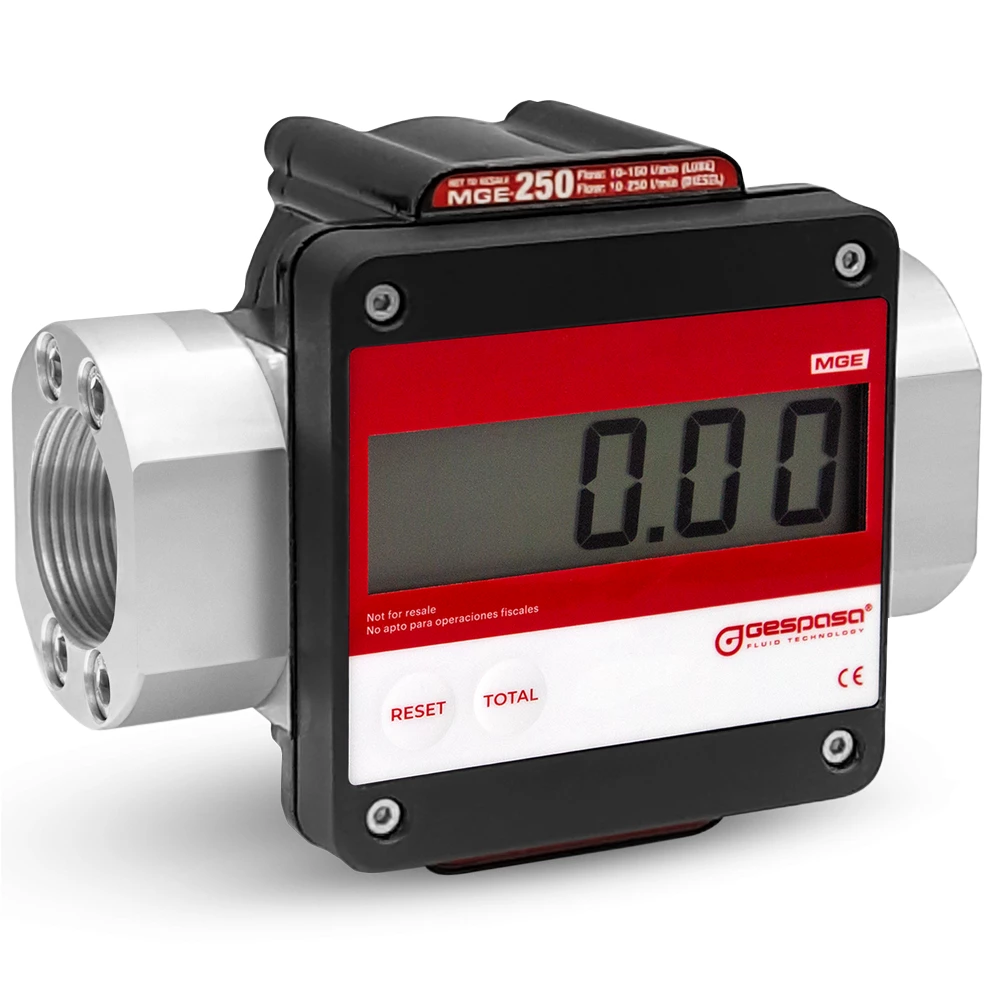

Flowmeter for lubricants, diesel, Biodiesel | MGE-250 - ELECTRONIC 10-250 l/min - ±0.5% | 1″ connection
€458,00 (€554,18 incl. VAT)
Electronic gauge with aluminum measuring chamber, with high accuracy oval gears.
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
MGE-250 1″ - Electronic accelerometer | Type: 32503-CF00000
MGE-250 1 1/2″ - Electronic gear gauge | Type: 32503-CF00001
MGE-250 1 1/2″ - Electronic Gear Gauge with Viton Hinge - B100 | Type: 32503-CF00012
Technical data:
- Current (approx.):
- 10-250 l/min (diesel)
- 10-150 l/min (lubricant)
- Tropical electronics
- 5-digit total counter
- It stores the gallons from the last service.
- Maximum pressure: 45 bar
- Min./Max. temperature: -10ºC / +50ºC
- Accuracy: ±0.5%
- Inlet/outlet connection: F1″ or 1 1/2″ (flange) (depending on model)
- It is suitable for lubricants with density up to SAE-140.
- Power supply via long-life button battery
- Low battery display
- It has calibration parameters and a stored liter counter in a PERMANENT MEMORY.
Size and weight (approx.):
MGE-250 F1″
- Dim.: 159x100x140 mm (length x width x height)
- Weight: 2.3 kg
MGE-250 F1 1/2″
- Dim.: 185x100x140 mm (length x width x height)
- Weight: 2.5 kg
