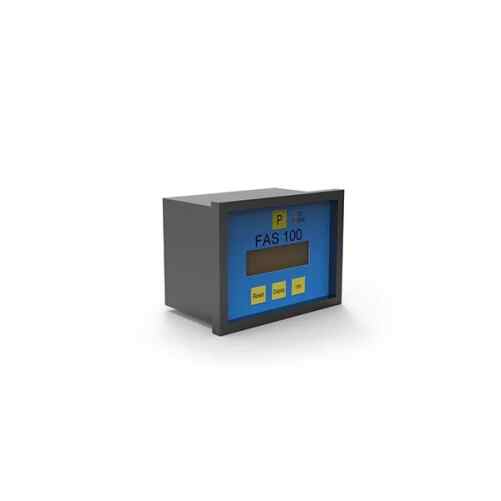

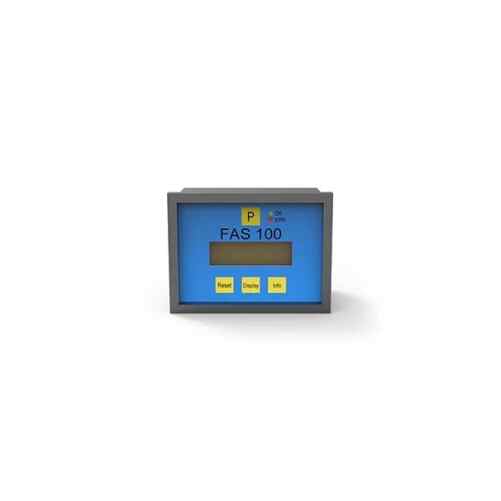

FAS 1000 - Panel Mount Displays with analog and frequency output
The FAS 100 are high-precision panel-mounted frequency meters with control outputs.
All versions feature a graphical display, intuitive user interface, scalable 4 - 20 mA output and frequency output. The K-factor and display size are freely adjustable, so the device can be adapted to any meter and application. The input fits pickups with 24 V frequency output.
Optional features include 20-point linearization, control inputs and outputs for batching or limit monitoring, and a built-in RS485 interface.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
The FAS 100 are high-precision panel-mounted frequency meters with control outputs.
All versions feature a graphical display, intuitive user interface, scalable 4 - 20 mA output and frequency output. The K-factor and display size are freely adjustable, so the device can be adapted to any meter and application. The input fits pickups with 24 V frequency output.
Optional features include 20-point linearization, control inputs and outputs for batching or limit monitoring, and a built-in RS485 interface.
For fast test setups in the laboratory and simple setting of individual parameters, the PC-based controller SW EasyControl for WINDOWS is available free of charge.
Functions & Specifications
Technical Data
- Frequency input for 24V digital signals
- Analog Output: 4 to 20 mA
- 24 V frequency output, freely scalable
- 20 point linearization of the measured value
- Control input and Control input
- RS485 interface
Features
- High accuracy
- Intuitive user interface
- Remote control SW free of charge
