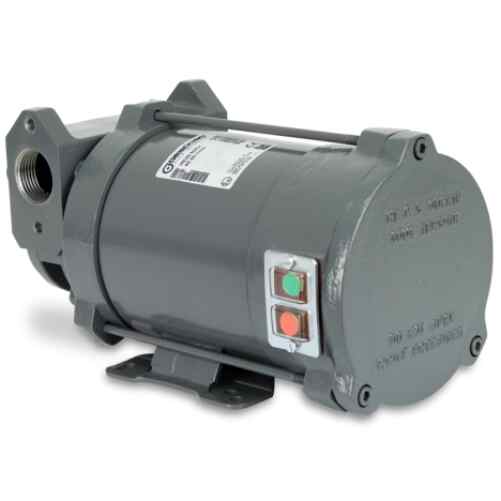

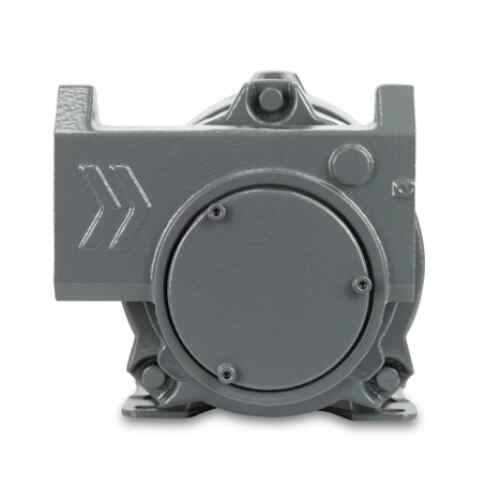

Explosion-proof Electric Pump | IRON-50 Ex-24 VDC

• Type: IRON-50 Ex 24 VDC - 50 l/min.
• Code: 10153
• Self-priming - self-priming, explosion-proof, eccentric with self-adjusting blades
• With recirculation bypass
• Suction power: 2.7 m
• Suction line suction: 5 m
• Free flow rate: 50 l/min
• Consumption: 20-27 A (24 VDC - 10-14 A (24 VDC)
• Motor: 0.18 kW 12 or 24 VDC EExd
• With thermal protection
• 3,000 rpm
• S2 30′ operation
• IP-55 protection
• Operating temperature: -10 ºC - +40 ºC
• Category: ATEX II2G
• Protection mode (own power supply): Ex h IIB T4 Gb
• Threaded connection: F1″ (BSP) and flange
• ON/OFF switch
• 3 m cable
• Anti-rust treatment

Dimensions and weight:

• Dimensions: 270x165x150 mm (LxWxH)
• Weight: 11.8 kg
