Clamp-on Ultrasonic flowmeter for water, easy installation

Clamp-on Ultrasonic flow meter for water, easy installation

Features:

Quick installation
No pressure drop
No corrosion
No moving parts to maintain or replace
No problem with fluid compatibility
Non-contact measurement
Budget model

96.42% Has a good to very good experience with SENSORS.NL

Personalized customer service

Spacious assortment with a wide range of top brands

Need an additional discount for quantities? Please contact us

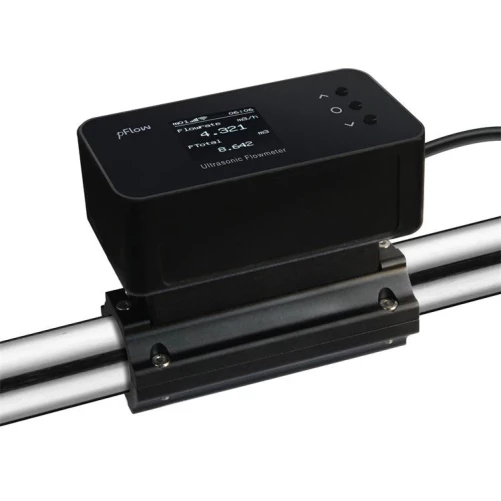

F2 ultrasonic flowmeter achieves seamless integration through non-contact measurement. F2 combines technologically advanced measurement technology with easy installation, impressive versatility and minimal maintenance. The flowmeter is suitable for all sizes from DN20 to DN80 and is unaffected by the liquid medium, piping material and installation location.

Specifications

Performance Index
Flow Range	(0.03～5.0) m/s
Accuracy	Valued ±2%
Repeatability	0.40%

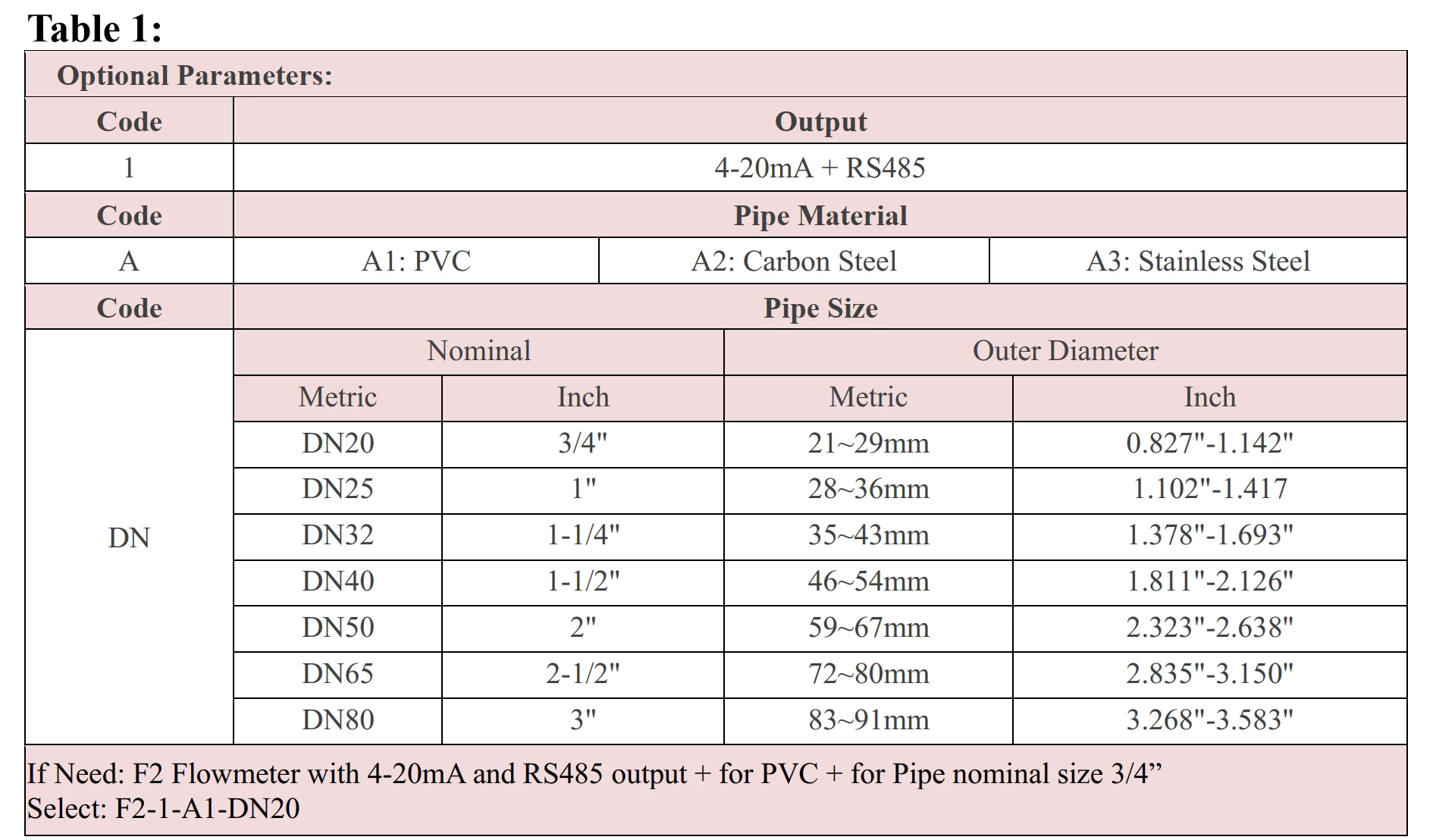

Pipe Diameter Range (Optional)	DN20～DN80
Measuring Medium	Water

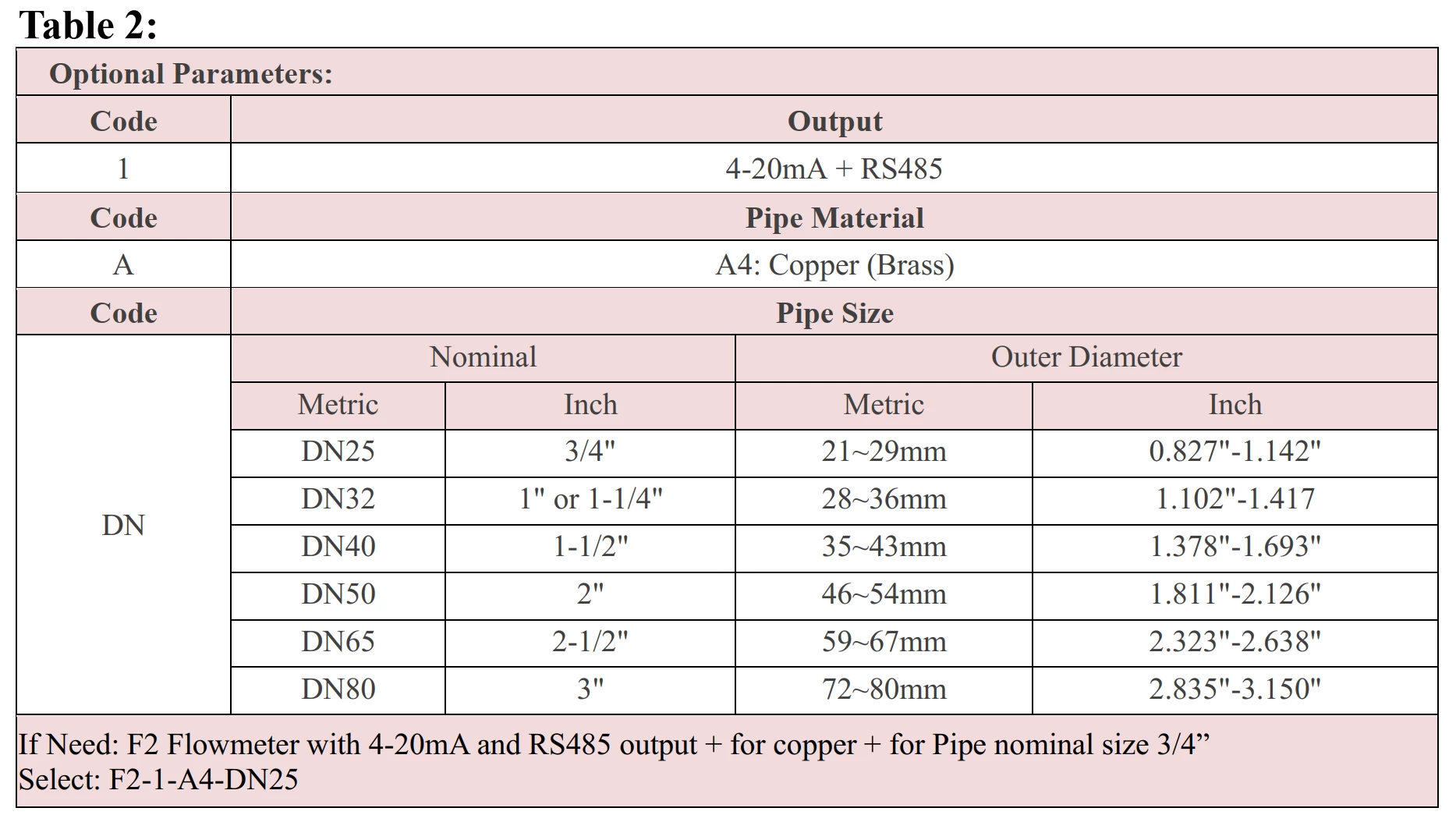

Pipe Material (Optional)	Carbon steel, stainless steel, copper, PVC
Function Index
Communication Interface	RS485 communication interface, support Fuji protocol and Modbus protocol
WIFI	Frequency range：2.412~2.484GHz
	Transmitting power: 802.11b 16±2 dBm
	802.11n 13±2 dBm
	802.11g14±2 dBm
	Working temperature：-20~85℃
	Theoretically, it can reach 40m transmission distance in an open environment
Power Supply	10～36VDC/500mA
Keyboard	3touch keys
Display	128×128 OLED
Temperature	Transmitter installation ambient temperature：-10℃～50℃
Temperature	Sensor measurement medium temperature： 0℃～60℃
Humidity	RH: 0～99%，no condensation
IP	IP54
Working Pressure	1.6MPa
Physical Characteristics
Transmitter	All-in-one
Sensor	Clamp-on
Cable	φ5, 6 core electric cable, standard length：2m
